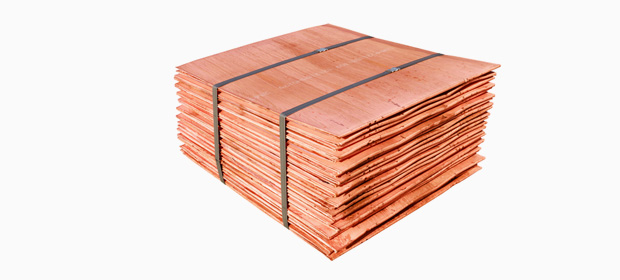

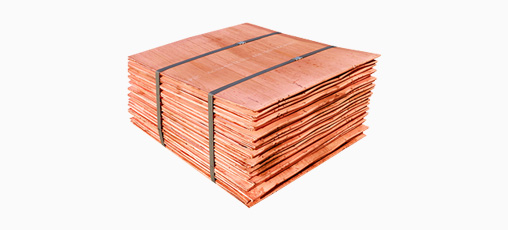

Electrolytic Copper (Cu)
Electrolytic copper
Registered as ‘Grade A,’ the highest grade of the London Metal Exchange (LME).
Electrolytic copper is high-purity copper with over 99.99% purity, produced by electrolysis of refining blister copper made using the flash smelting process and the Mitsubishi continuous process. The quality of LS MnM’s electrolytic copper has been recognized internationally, having obtained Grade A, the highest grade on the London Metal Exchange (LME), on top of being registered on the Shanghai Futures Exchange. Electrolytic copper can be applied to a wide variety of fields, thanks to its excellent electrical conductivity, thermal conductivity, processability, and corrosion resistance.
-
Production capacity
680 kt/y
-
Uses
- Electric wire materials Power line (ultra-high voltage, submarine cable) / Communication cable /
Automobile / Industrial equipment- Copper Semis Electrical & electronic / Building materials / Electric vehicles / Batteries -
Specifications
Properties Unit Specifications Cu % > 99.99 Impurities Se, Te, Bi ppm < 2 Sb ppm < 4 As, Pb ppm < 5 Fe ppm < 10 S ppm < 15 Ag ppm < 25 Total amount of impurities ppm < 65 -
Shipping type
Bundle weight 2.5 ± 0.5 t Number of sheets in a bundle 21±2 sheets Weight of each sheet 120±20 kg Sheet size Width 980 ± 20 mm
Length 1050 ± 50 mm
Depth 10 ± 5 mm
-
-

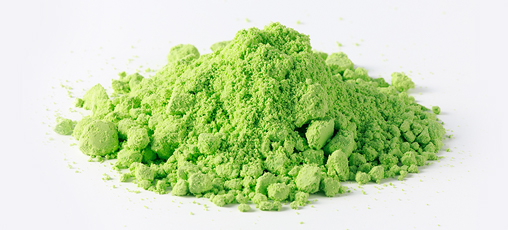

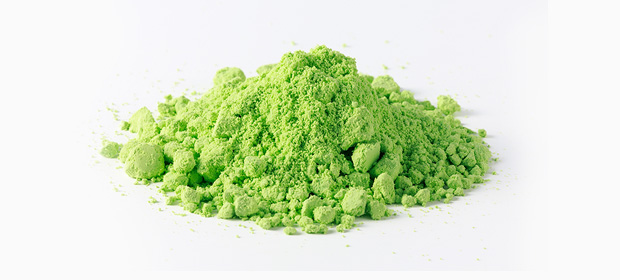

Crude nickel sulfate (Crude NiSO4)
Crude nickel sulfate (Crude NiSO4)
The electrolyte used in the electrolysis process of refined blister copper is concentrated and then filtered to produce crude nickel sulfate. Crude nickel sulfate contains more than 80% of Ni, making it ideal for use as a base for lithium-ion battery cathode materials, catalytic converters, plating and coloring of precursors.
-
Production capacity
5,000 t/y
-
Uses
Nickel-derived compounds, secondary batteries, etc.
-
Specifications
Properties Unit Specifications Ni % > 18 Cu % < 3 Zn, Fe % < 5 -
Shipping type
Packing 1 t Bag
-
